All of the tungsten carbide mining tools provided by XYMJ are made from virgin raw materials with advanced technology for high precison grinding and polishing. Various sizes and styles are available with custom service.

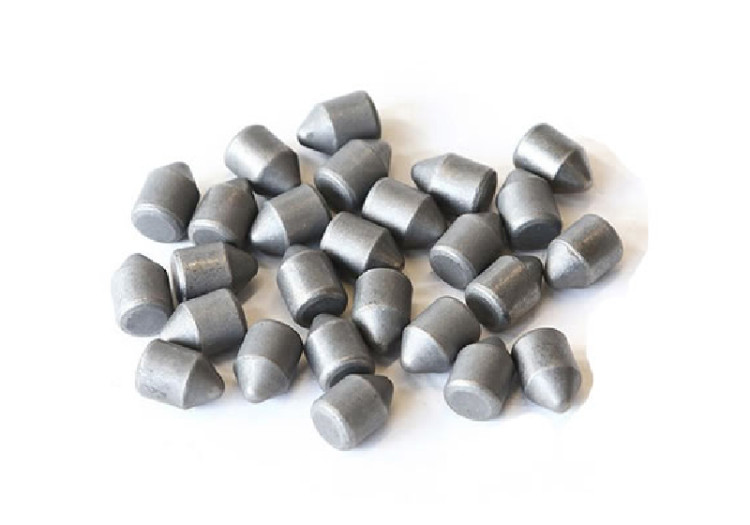

Tungsten Carbide Buttons</p
XYMJ provides the drill bit of carbide mining buttons with passivating treatment for a 5 to 6 times longer service life than the same diameter of drill bit, which saves much time and manual labor, different types available, including type B, type E, type P, type Q, type S, type Z, etc.
Features
1.high strength and high hardness.
2.excellent hardness, wear-resistance, high elastic modulus, high flexural strength.
3.good chemical stability (acid, alkali, high-temperature oxidation), impact resistance.
4.good toughness, low coefficient of expansion, etc.

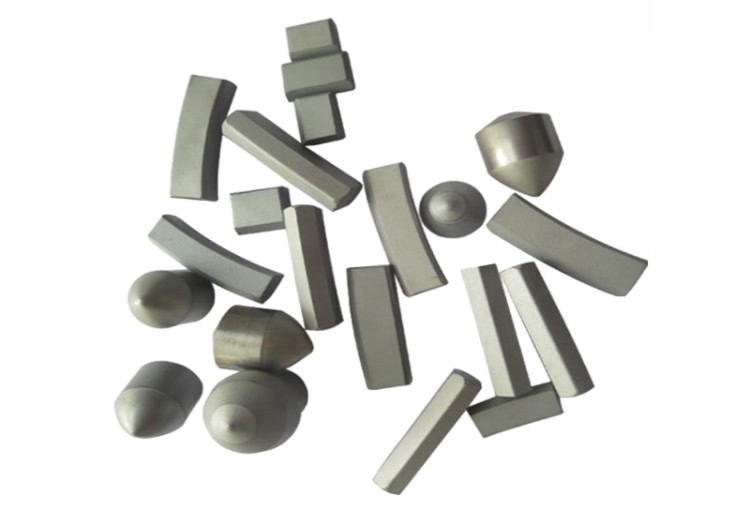

Tungsten Carbide Mining Tips
Tungsten carbide tips are widely used in oilfield drilling and snowplow, or other equipment because of their unique properties, mainly including tips for road milling, tips for coal mining, tips for tunneling and tips for trenching, etc. In a word, tungsten carbide mining tips are used for rock cutting and milling with big consumption. Stability and high technology ensure the high quality of XYMJ carbide mining tips.
Mainly material grades include YG4C, YG8, YG11C, YG15. YG8 material grades are used for coring crowns, electrical coal drill bits, coal cutting picks used in geological prospecting, coal mining. YG11C grades are used for heavy rock drills and rotary hammer rock drills cutting hard rocks. YG15 grade has a high intension, lower wear resistance. Suitable for making bits for rotary machine and heavy rotary machine to drill hard and very hard rock.
The tension controller is a high-precision instrument with digital, automatic control for web tension. It can be widely used in tension control of the printing, packaging, paper, textile and dyeing industries. Web tension controller adopts the CPU of 16-bit or 32-bit, with high speed, high precision, high reliability.
Why Choose The Automatic Tension Controller
A typical tension control system is mainly composed of a tension controller, a tension reader, a tension sensor, a magnetic powder brake, and a clutch. Depending on the loop, it can be divided into types of open loop, closed loop or free ring. According to the monitoring method of different coils, it can be divided into types of ultrasonic, floating roller, tracking arm. The stability of tension control has directly affected the quality of the slitting products. If the tension is insufficient, it will generate drift in the raw materials moving and the finished paper wrinkle will appear after the rewinding. If the tension is large, the raw material is easily broken, so that the finished products will appear more broken ends after the rewinding.
The Performance Of The Automatic Tension Controller
The tension controller refers to the durable control of the tension performance when the feedstock is stored on the device. This control is required to be valid for any operating speed of the machine, including the deceleration, acceleration, and uniform speed of the machine. Even in emergency parking conditions, it should be guaranteed that the parties are not damaged.
The automatic tension controller is a control instrument that can directly set the tension value of the controlled machine, then directly output the signal of the tension sensor as a tension feedback value, after the proposed bias, outputting to the PID controller for disposal. Then input to the core executive agency to control and finally arrives the purpose of a small bias.
Function Of The Automatic Tension Controller For Unwinding And Rewinding
In the control industry, in some strip-shaped and line-shaped products, tension control is required to achieve production requirements. The general tension controller also has a volume extent function, which is generally applied to the down coiler equipment, with unwinding and winding types. The tension controller also has a taper adjustment function that can be sent directly to the winding taper on some processes inside the controller.
Fully automatic tension control is the actual tension value of the material, measured by the tension sensor directly, and then converts the tension value into a tension signal feedback to the tension controller. Through the comparison of this signal and the pre-set tension value, calculates the control signal. The automatic control execution unit makes the tension value is equal to the pre-set tension value, to achieve a stable purpose for tension control. A fully automatic tension controller is an advanced tension control method.
The fully automatic tension controller measures the actual tension of the coil materials and automatically adjusts the tension value of the coil according to pre-set tension value through the PID algorithm. It has extremely high accuracy tension control, suitable for applications where have high requirements for the accuracy of the tension controller.
How To Solve The Malfunction Of The Automatic Tension Controller
1. The automatic tension controller adopts the AC 185-264V power supply. After the current is switched on, if the tension controller does not work, check if the power supply is connected correctly or whether the fuse is abnormal.
2.If the display signal is incorrect, can re-set the correct signal range. Check the route and the tension sensor whether there is a signal fault or replace the tension sensor.
3.If the tension controller has no signal output, usually there is a connection problem, so check whether the signal output connection is correct, then turn off the voltage for ten seconds and then switch on.
4.If the tension controller signal output is unstable, check whether the roller, bearing and magnetic powder clutch, brake, or driver have an abnormality. Replace the tension sensor or re-calibrate the signal range.
Once there is not an alignment of the coils, it will cause errors in the subsequent steps and the material wasting or the downtime of the machine. Therefore, when processing the web, the web guiding is necessary for the offset and it is widely used in a bonding machine, a printing machine, a coater, a paper machine, a dyeing machine, etc, which has various requirements for the winding and rewinding processes. An all-in-one web guiding system refers to the technical operation of the coils to keep the edge of the coil neat and consistent during spraying, printing, die-cutting, lamination, slitting, or other coil winding processes. Its wide applications have brought huge benefits to the coil industries. The all-in-one system has automated industries such as corrugated paper, textile, printing, labels, papermaking, plastic film, building materials, tires, and non-woven corrugated paper processing.
The Work Principle Of All-in-one Web Guiding System
The high-precision, high-speed, and high-efficiency coil automatic processing has high requirements for the lateral position of the controlled coil. Equipped with a high-performance automatic web guide system is the key to improving coil production capacity and output. The coil will shift laterally during moving, unwinding and rewinding. Therefore, the web guiding system can be installed in the above three positions for controlling the coil to pass through the designated position accurately.
All-in-one web guide machine adopts high-speed microprocessor, digital, modular and intelligent circuit design. The advanced programming, user-friendly interface, high-performance components and complete circuit protection design, make the system run continuously and stably. The response time of the control system is less than 0.01 seconds and the accuracy of the system itself can reach 0.01mm. During the coil winding process, the web guide sensor detects the position of the edge or line to pick up the deviation signal of the edge or line position.
Then the position deviation signal of the web guiding machine is sent to the web guide controller for logical operation. After the judges and processes of the control unit, it will control the drive motor to skew the web to the correct position.
The Functions & Advantages Of All-in-one Web Guiding System
The high-performance web guide system has a fast response time, high-speed CPU calculation and can support ultrasonic sensors, photoelectric sensors, CCD sensors for the different response of coils. It has the advantages of simple and practical operation, ball screw, high precision, low noise, maintenance-free, long service life, flexible installation.
Center compensation deviation web guiding can quickly guide the high-frequency feed errors. It integrates operation and control technology with a highly compact web guide. The guiding system has an innovative sensor detection real-time display and a real-time feedback system for system detection information.
The all-in-one system is driven by a brushless DC servo motor and precision ball screw, with compact structure, good mechanical rigidity, low inertia, high precision, suitable for high-speed and high-precision web guide in coil processing.
Three Detection Methods Provided By All-in-one Web Guiding System
The All-in-one web guiding system provides three different detection methods, which include edge detection, line tracking, or alignment detection. The drive system is driven by a brushless motor and the drive stroke is strictly proportional to the coil offset. The system can also be used in conjunction with different sensors to meet the needs of different coils, such as ultrasonic sensors, photoelectric sensors, CCD sensors, etc. The microcomputer digital controller provides precise control for the various functions of the guide system.
Daily Maintenance Of All-in-one Web Guiding System
1.Alignment: Tools, workpieces and accessories should be placed neatly. The web guiding system should be equipped with thorough protection equipment.
2. Cleaning: Cleaning inside and outside including all sliding surfaces, guidelines, gears, racks, etc, ensuring all parts will not leak oil, water, air, or electricity.
3. Lubricating: Refuel and change oil timely. The oil quality meets the requirements. Oil tanks, oil guns, oil cups, lumps, tubes should clean and keep complete.
4.Safety: The operation personnel should be familiar with the maintenance structure of the web guide system, complying with the operating procedures and reasonably use the all-in-one system with daily maintenance, carefully maintenance tools to prevent accidents.
XYMJ provides customized tungsten carbide dies. Tungsten carbide has excellent hardness, wear&corrosion resistance, resistance and small expansion coefficient, which increase the service life. The life time of carbide dies is ten times or even dozens of times than the steel dies. XYMJ can provide various types, which including cold heading dies, cold punching dies, wire drawing dies, hexagon dies, spiral dies, etc.
Factors To Consider For Designing Carbide Dies
1. It must have a high yield, good structural shape with high dimensional accuracy.
2. If necessary, all the bottom and upper of the carbide dies should use tungsten carbide through the analysis of the most worn parts. In some cases, you can adopt tool steel and tungsten carbide in combination under the situation that has punch difficulty processing or fixed in order that the mould manufacturing and application must be the most reasonable and economical.
3.Under the allowed processing conditions of tungsten carbide die, the mosaic structure is more economical, easy to process and repair.

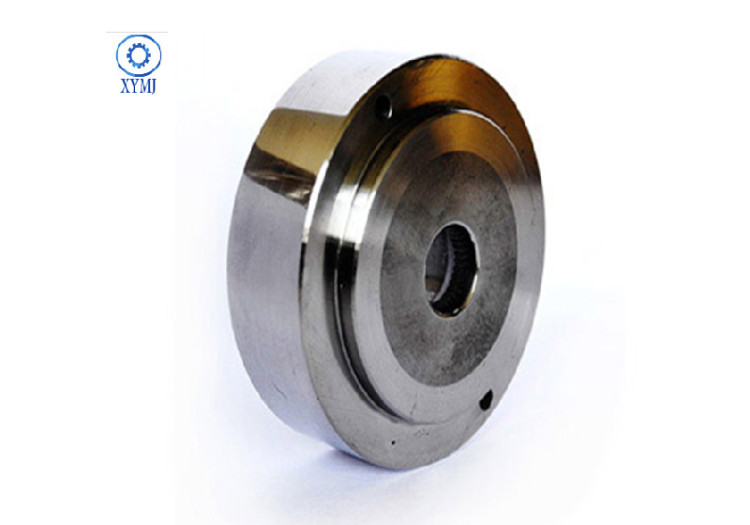

Tungsten Carbide Punch Dies
The carbide punch manufactured by XYMJ has excellent performance, outside diameter, inner diameter, the height of which, are all accurate grinding, tolerance within 0.01mm.
Features
1.Well abrasion Resistance.
2. High Hardness, around 88HRA or even 91HRA.
3. A high compressive strength is greater than 6000MPa.
4. Excellent corrosion Resistance.
5. High precision and high quality, the service life is over 10 times longer than common high-speed steel.
6. A low coefficient of thermal expansion

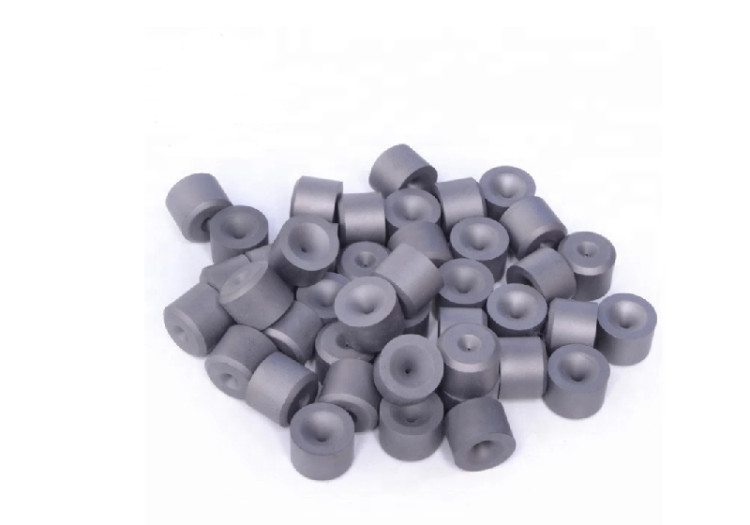

Tungsten Carbide Wire Drawing Dies
Tungsten carbide wire drawing dies are made from 100% virgin material of WC and Co. It has good wear resistance, high bending strength. It is a good economical choice for steel wire and other large-size wire drawing applications. It is applied for drawing wire, tubes, rod, type as S11, WTA. S13 ect, used for wire drawing of steel, aluminum wire and copper wire.
Advantages Of XYMJ Tungsten Carbide Wire Drawing Dies
1. excellent wear-resistance, adopting GB class A cemented carbide mould core with strength over 2200N/mm 3.
2. More wire rods can be drawn: the size is 20% longer than common mould, which makes XYMJ carbide wire drawing dies can work longer.
3. Tightening connected with the steel jacket: adopting advanced cold bushing technology and interference bushing craft. They are tightening connected with the steel jacket.
XYMJ manufactures tungsten carbide products with 100% virgin material with high stability and high performance. All carbide products manufactured by XYMJ meet the ISO quality standard. Also, skillful workers and advanced equipment enable XYMJ to have the ability to provide all kinds of customized carbide parts. XYMJ take great efforts to increase quality rather than quantity to promote the flexibility of competing in the world market. Always satisfying customers, providing them with high quality and grade product as well the service is our aim.

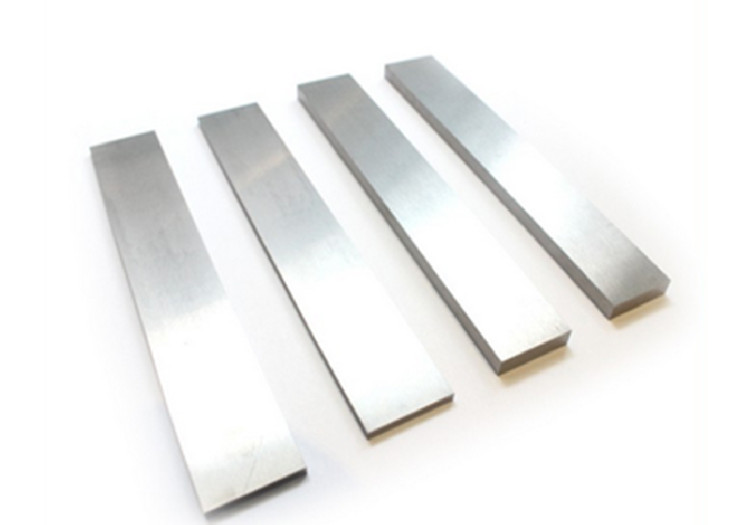

Tungsten Carbide Strips
The main composition of tungsten carbide strips is tungsten powders and cobalt powders. It has have many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and very stability under high temperature, widely used in many fields such as woodworking, machining of refractory alloys, stainless steel, high manganese steel, for processing cast iron, non-ferrous metal and aluminum section bar, etc. XYMJ has various types including carbide strips with more than 300mm, carbide strips with angle, STB blanks with US Standard, etc.

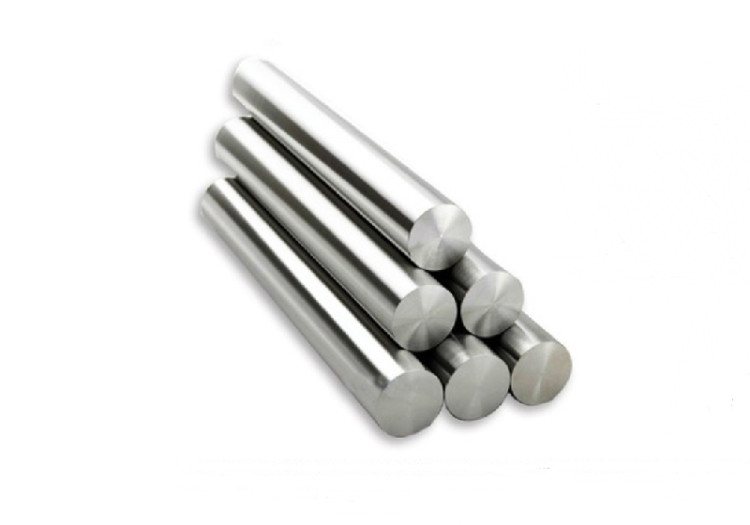

Tungsten Carbide Rod
Carbide rods can be used for making end mills, various drill bits, automobile special cutter, engine special cutters, horology, processing special cutters, integral vertical milling cutter, graver and etc. Also, the tungsten carbide rod can be made into hard alloy punches, mandrels, centers, and perforation tools.
Features
(1) Good wear resistance, higher toughness, high precision, better deformation and fracture resistance.
(2) Advanced automatic extrusion equipment to produce.
(3) HIP sintering and precision grinding to ensure have good performance.
(4) Both blank and finished conditions available.
(5) Can reach a mirror effect surface after accurate grinding and polishing.

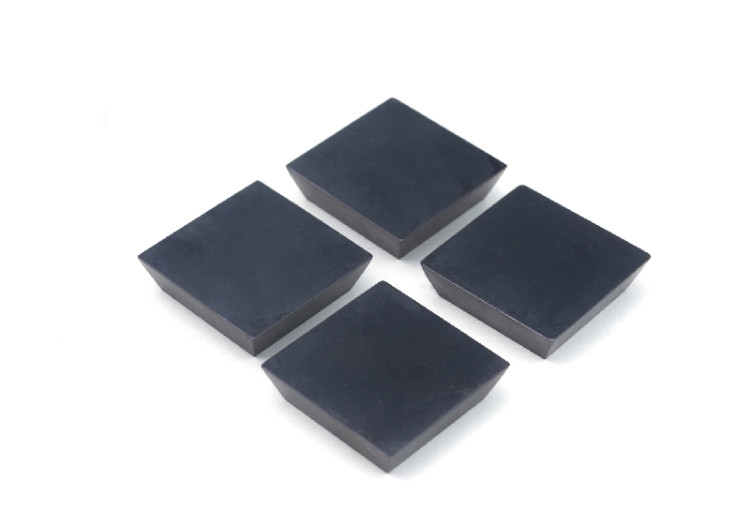

Tungsten Carbide Plate
Carbide plate has high hardness, good abrasion resistance and toughness, heat and corrosion resistance. It is widely used in the following fields:
1. The production of cast iron rolls and high chrome roll knife.
2. Suitable for the production of discharge plate, stamping die, cold punching die, such as electronic stamping die.
3. Used in the production of copper, aluminum, stainless steel, cold rolled sheet, El board, Q195, SPCC, siliconsteel plate, metal, standard parts, upper and lower punch and otther high-speed mold.
4. Wear resistance of tungsten carbide plate is higher, suitable for hardwood, logs, aluminum, copper rods, cast ironiron processing for the production of various types of motors, electronic into the mold, stamping electronic mold.
XYMJ is a professional tungsten carbide supplier for carbide mould/dies and all kinds of customized wear parts. Which integrates research & development, production, marketing and services.Our company was founded in 1999 and located in Zigong City,Sichuan province,China. We have more than 20 years experience in researching and manufacturing of tungsten carbide products such as carbide molds & dies, bushings, valve seats, nozzles, inserts & cutting tools, carbide rods and bars, carbide plates & strips and other customized tungsten carbide wear parts etc.
We can produce various products as per customers special requirements. OEM/ODM is welcomed. With high-tech equipment and strict quality test system, We have won a good reputation of high quality in both domestic and overseas markets.
Our tungsten carbide products have been exported to many countries around the world. Being reliable and professional is our value of service. Providing customers with high satisfaction services and high quality products is always our mission. Sincerely welcome the friends all over the world to contact us for WIN-WIN cooperation!
Tungsten carbide blanks production
Good quality carbide products rely on 100% virgin raw materials and advanced wet-milling,pressing machines and sintering furnaces. We put emphasize on every production process of our carbide blanks. To keep good quality of carbide blanks is the base of furtherly machined high precision finished carbide parts.
Finished products machining
XYMJ owns a series of high-precision grind machines, including flat grinding machines, OD and ID machines, Centerless grinding machines and customized grinders. Also we have CNC machines, EDM, Wire-cutting machines and drilling machines etc. With our skilled workers, we can control very high precision of each carbide part.
Inspection and testing process
In order to ensure the quality of all our tungsten carbide finished products, a very strict QC management system has been introduced. With our advanced inspection equipment and our professional inspectors, we are able to do raw materials inspection, on-site inspection and after finishing inspection to ensure 100% good quality of your carbide products.
Packaging and Shipping
Special-designed packing boxes and tubes will be used properly for the standard and customized carbide products to ensure the safety of the goods during the transportation process. A wide range of shipping ways can be available for your shipments, for example we can ship goods by Sea, by air and by Express companies like DHL/FedEx/UPS/TNT/Aramex etc.
When adopting high function and high-speed molds for production, the mold is required to have a long service life. In recent years, high-precision and high reliability are required even if for a small amount of production. Carbide dies with high durability will be the best choice.
The mold should be given a very large extrusion, bending stress, impact and other messy loads during the extrusion process. Therefore, the material selected will have high power resistance after heat treatment. The mold material should have outstanding hardenability to ensure that the mold can be hardened and uniform.
2.Excellent wear resistance
The mold should have high wear resistance to ensure normal service life and produce large quantities of extruded parts. In general, the hardness of steel is proportional to wear resistance under certain conditions. Therefore, mold materials must have sufficient hardenability. In addition to the hardness, The decisive factors are the thickness, composition, amount of excess for the matrix after heat treatment and the amount, size, type, dispersion, red hardness of carbide. The tungsten carbide has a content of more than 80% of WC, the wear resistance of which is several times higher than steel. So to get a long service life for the drawing mold, and carbide is mostly adopted for the materials.
3.Sufficient thermal stability
For continuous production, the temperature of the mold sometimes will reach 200 ° C, which will reduce the strength and hardness, so that the mold material should have outstanding thermal stability. Carbide drawing dies have sufficient thermal stability for high-temperature resistance.
4.Excellent processability
Cold extrusion mold has a long manufacturing time with high accuracy requirements. Usually, it is necessary to cast, cutting, heat treatment, grinding or other fine finishing. So only the materials that have good processability can meet the production needs. The excellent process of carbide molds will be the best choice.
Tungsten carbide wire drawing dies have high hardness, excellent thermal stability, high durability and long service life and are one of the best mold materials.
Carbide wire drawing dies adopt high-quality tungsten carbide as the core, which has high hardness, good thermal conductivity and low friction coefficient. Tungsten carbide wire drawing dies are simple to produce with corrosion-resistant, impact-resistant, and low cost which is the outstanding feature of this product. It is suitable for the drawing of ferrous metals, large-size wires, and occasions with poor wire drawing conditions.

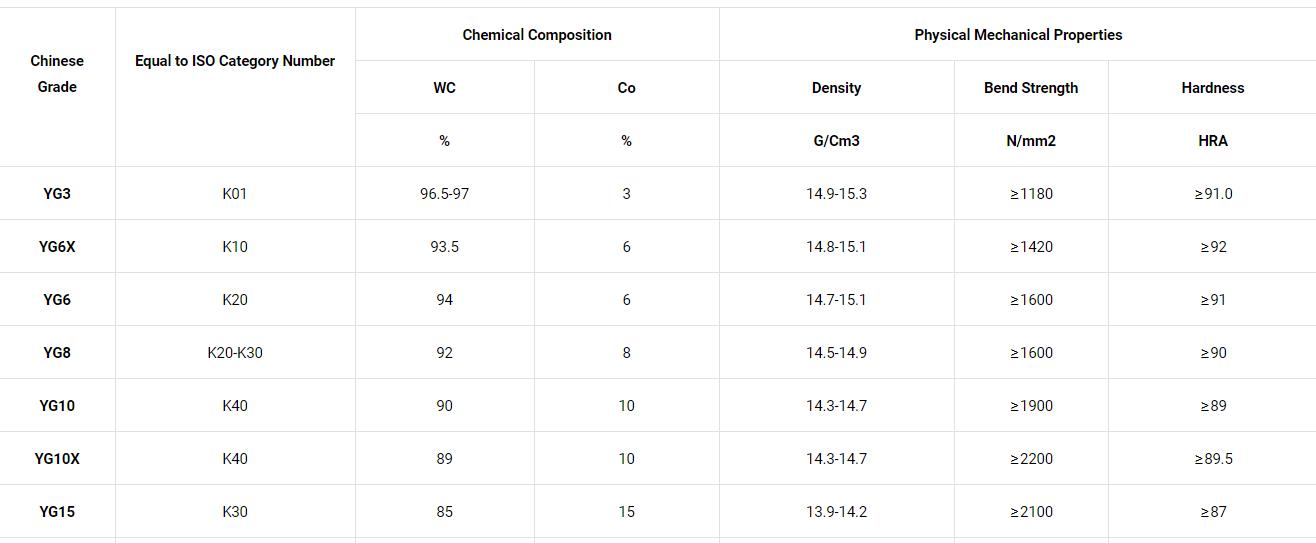

The Brands And Applications Of Tungsten Carbide Wire Drawing Dies
Wire drawing is the manufacturing process for reducing or changing the cross-section of the metal wire by using a series of stretched plates or molds. Carbide wire drawing die is a kind of tungsten carbide dies with wide applications in various fields.
Brands: YG6X
Applications
Suitable for the production of carbide dies with drawing inner holes which are smaller than ¢ 6.00mm.
Brands: YG6
Applications
Used for the non-ferrous metal round bar which has drawing inner holes that are smaller than ¢ 20mm and the drawing dies which has inner holes that are smaller than ¢ 10mm.
Brands: YG8, YG10
Applied for drawing steel and the production of non-ferrous metal round bars & pipes.
Brands: YG15
Used for the drawing of steel rod and pipe which have a high shrinkage.
The Precautions And Maintenance Of Tungsten Carbide Wire Drawing Dies
1. Ensure the stability of the drawing machine
Each drawing drum, over-line guides should be smooth, flexible, strictly controlled for beating tolerance. If the drum is found, the guide wheel has a worn trench and the drawing dies should be repaired in time.
2.Good lubrication
Good lubrication is important to ensure the surface quality of the wire and extend the service life of the mold. The lubrication index should be checked frequently, removing the copper powder, impurities in the lubricant, so that the equipment hole can not be polluted. If the lubrication doesn’t work, it must be replaced in time and clean it.
3. Reasonable allotype
Reasonable allotype is to ensure the surface quality of the wire and control size accuracy, reducing the wear of wire drawing drum and equipment operating load. For sliding wire drawing machines, it is necessary to familiarize with the mechanical elongation of the equipment. The sliding coefficient is reasonably selected, which is the primary step of fitting mold.
4. Appropriate adjustment of the size for the compression angle
The surface reduction rate of each drawing and the material of the drawn wire are also closely correlated with the compression angle of the respective mold. The size of the compression angle is appropriately adjusted according to the size of the surface reduction rate.
5.The timely replacement of the aging drawing dies
When the drawing die reaches the service life, please replace it in time for repairing treatment to avoid excessive causing scrap the wire.
Tungsten carbide is widely used in various industries due to its unique high hardness and strong wear resistance. What are its common applications?
1.Cutting tools
Tungsten carbide can be used as a variety of cutting tools. Because of its high hardness and strong resist compression performance, tungsten carbide is one of the best material choices for cutting tools. The tungsten carbide cutting tools include carbide drill bits, small circular saw blades, carbide rotary burr and so on. As the material of cutting tools is the most widely used field for tungsten carbide.
2. Mining tools
The cemented carbide for mining accounts for about 30% of the total tungsten carbide production. Thanks to the high hardness, strong impact toughness, outstanding bending strength and excellent wear resistance, carbide mining tools are usually applied in geological exploration drill bits, roller cone drills and coal cutters for petroleum and gas fields, engineering excavation road tools, percussion drilling in the building materials industry.
3. Tungsten steel mold material
Under normal circumstances, the proportion used in the manufacturing of various molds accounts for about 8%, which includes carbide drawing dies, cold heading dies, cold punching dies, cold extrusion dies, hot forging dies and drawing mandrels. Usually, the cemented carbide applied for making molds is selected from medium and high cobalt, coarse grain grades.

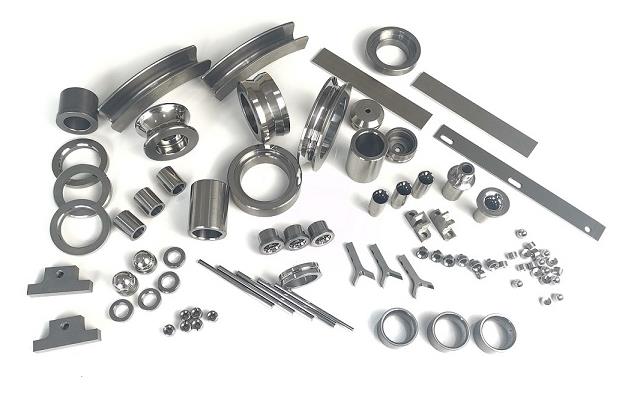

4. Wear parts
The tungsten carbide wear parts include carbide nozzles, carbide balls, tungsten carbide valve seat & valve sleeves, carbide tire cleats, carbide guide rails and so on.
5. Structural parts
The carbide structural parts include rotating seal ring, lathe head, grinding machine spindle, bearing, etc, which can effectively solve the problems of mechanical seal ring thermal cracks.

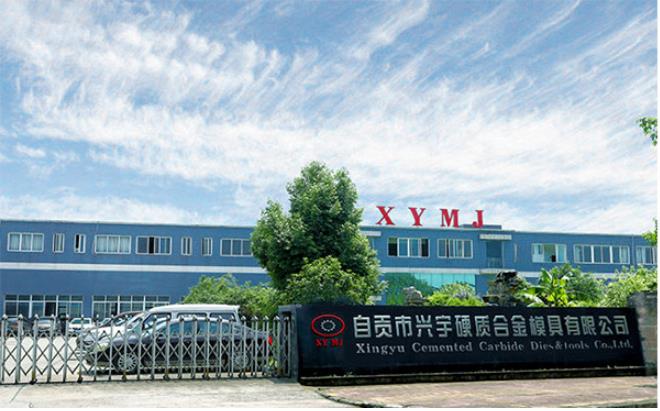

Trustworthy Tungsten Carbide Manufacturer – XYMJ
XYMJ has focused on the production and processing of tungsten carbide products for more than 20 years, the products including carbide dies, bushings, valve seats, inserts & cutting tools, carbide rods and bars, carbide plates & strips and other customized tungsten carbide wear parts. It has superb blank forming and precision machining capabilities with high performance and a low-cost advantage. It has a grinding machine for smooth finish, frosted finish, concave finish, and convex finish, which can better satisfy customer’s requests.
High performance of tungsten carbide, in addition to high hardness, there are also excellent wear resistance, corrosion resistance, high-temperature resistance, etc and can be used as cutting tools, mining tools, wear parts, etc, which are also the reasons for wide applications in various industries.
Tungsten carbide is an alloy which has the main components of tungsten carbide powder with metal bender. It is widely used for manufacturing high-speed carbide cutting tools for hard, tough materials. The high-performance tungsten carbide has excellent characteristics.
of hard, tough materials. The high-performance tungsten carbide has excellent characteristics.
1. High hardness and excellent wear resistance
The hardness of cemented carbide can reach 86 to 93HRA, which is equivalent to 69 to 81HRC. High hardness can be maintained at 900-1000 ℃ with excellent wear resistance. Compared to high-speed steel, the cutting speed can be 4-7 times higher with 5-8 times service life, which can cut hard material with a hardness of 50 HRC.
2.High strength and high elastic modulus
The tungsten carbide has a compressive strength of up to 6000 MPa and an elastic modulus (4 ~ 7) × 105 MPa, which both are higher than high-speed steel. However, its bending strength is low, typically 1000 ~ 3000MPa.
3. Excellent corrosion resistance and oxidation resistance
It is generally resistant to atmospheric, acid, alkali and is not easy to oxidize. There is a wide range of applications in the industries of fluid and chemical, such as various valves used for fluid control including regulating valves, black water valves, lock slag valves, and decompression noise reduction valves, etc.
4.Small linear expansion coefficient
When the tungsten carbide products are working, the shape size the stable
5.The finished products are no longer processed with re-grinding
Due to the high hardness and brittleness, the powder metallurgical formation is no longer cutting or re-grinding, and when the demand is re-processing, it can adopt electric sparks, line cutting, electrolytic grinding and other electric processing or special grinding wheel cutting. It is usually used by a certain specification paper made of cemented carbide, adopting brazing, bonding or mechanical clamping for the blade body or mold.
How To Improve The Performance Of Tungsten Carbide
In order to adapt to the harsh environment under different working conditions, tungsten carbide often needs to be reprocessed to make corresponding changes for the original performance, so what are the methods to change the performance of tungsten carbide?
1. Improve the quality of raw materials
Improve the purity of raw materials
High-strength, high-impact toughness alloys have high requirements for the purity of raw materials, while continuous cutting tool with low impact load but high machining accuracy, have low requirements for raw material purity.
Control the particle size and distribution of raw materials
It should avoid excessively large particles in the carbide or cobalt powder raw materials, and prevent the tungsten carbide from forming coarse carbide grains and cobalt pools during sintering.
At the same time, the size and composition of the particle materials should be controlled to meet the needs of different products. For example, carbide cutting tools should adopt tungsten carbide powder with a fisher particle size of less than 2 microns, wear-resistant tools should use tungsten carbide powder with a particle size of 2-3 microns, and mining tools should adopt tungsten carbide powder with the particle size of larger than 3 microns.
2. Improve the structure of the tungsten carbide
3. Improve or select new hard phase and binder phase
The performance of tungsten carbide is affected by the composition and structure of the hard phase and the binder phase. Generally speaking, when the content of the hard phase is high and the grains are finer, the hardness is high and the wear resistance is good, with poor impact resistance. Improving the hard phase and the binder phase is one method to change the performance.
4. Surface hardening treatment
To solve the contradiction between wear resistance and toughness, hardness & strength of tungsten carbide, surface hardening treatment can be adopted.
The coating is physically or chemically depositing a layer of TiC or TiN on the surface of the cemented carbide to increase the wear resistance. The most rapid development at present is the coated tungsten carbide.
