The continuous casting machine simplifies the production process, improving the production efficiency and metal yield, saving energy consumption and greatly reducing the production cost. Whether it is long-flow steelmaking or short-flow steelmaking, the continuous casting machine (CCM) is necessary. According to the structure and appearance, the continuous casting machine can be classified into a vertical continuous casting machine, vertical curved one, arc one with a linear segment and a horizontal one. The machine consists of a molten steel carrying device, a tundish and its replacement device, a crystallizer and its vibration device, a drawing straightener, a cutting device and an ingot device. The continuous casting machine provided by TINVO with solid and modularly design, meeting the requirements for steel quality and subsequent rolling processing through continuous innovation research. With rich technical experience.
Φ80-150 Round Billet Continuous Casting Machine
The continuous casting (CC) round billet refers to a machine that mainly produces tube blanks for seamless steel pipes and it adopts continuous cast steel iron-making technology. It is mainly composed of the ladle, tundish, mold (primary cooling), mold oscillating unit, secondary cooling and casting billet guide device, withdrawal and straightening unit, cutting unit, billet discharge unit (conveying roller), etc. The completely solidified straight billet will be cut into the required size by cutting equipment and transported to the subsequent process by conveying roller. The equipment used for continuous casting steel production is actually the complete set of mechanical equipment in the continuous casting production line.
The production process of continuously casting high-temperature molten steel into a slab with a certain cross-sectional shape and a certain size is called continuous casting steel. The equipment required to complete this process is called a continuous casting machine (CCM). The electromechanical-hydraulic integration of the steel casting equipment such as the body equipment, the cutting area equipment, the dummy rod collection and conveying equipment constitutes the core equipment of continuous steel casting.
R8-R12 Rectangular Billet Continuous Casting Machine

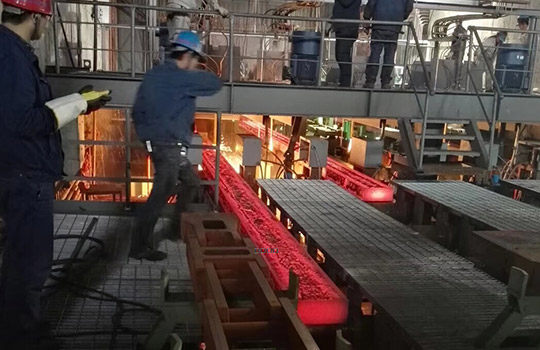

The R8-R12 rectangular billet continuous casting machine(CCM) belongs to the full arc continuous casting machine, which is divided according to the size and the shape of the cast section. Qualified molten steel from steel refining furnace will be poured into steel ladle, then it will be delivered to the position above the CCM after external refining processing, and molten steel will be poured into the tundish from ladle bottom outlet. Tundish nozzle shall be adjusted to match with the lower mould in advance. After opening the tundish stopper or sliding nozzle (or sizing nozzle), molten steel will flow into forced water-cooled copper mould. The molten steel inside the mould will be quickly cooled into crystals. Withdrawal and straightening machine will pull out the dummy bar (with dummy bar) from the mould at a certain speed. After pulling out from the mould, the casting billet shall be cooled by spraying water, and this is called secondary cooling. The secondary cooling device of crystallizer and the drawing straightening equipment of the full-arc continuous casting machine are arranged on a circle of 1/4 arc. The slab is arc-shaped in the crystallizer. The casting billet is continuously pulled out of the continuous casting machine to be cut to a fixed length and output from the horizontal direction. Meanwhile, the molten steel is continuously poured into the mould. The height of the continuous casting machine is basically equal to the arc radius. The outer arc radius of the continuous caster is usually called the arc radius of the arc continuous caster.
TINVO is your trustworthy manufacturer for CCM machine with the best prices and superior quality. It offers comprehensive continuous casting solutions conforming to standardization, high economic benefits and high-tech high-speed drawing, the most affordable price guaranteed.
